Mobile Direct Recognition MDR mobile OCR recognition system is a software running in Android handheld terminal, which realizes mobile OCR recognition capability based on AI algorithm. Not only that, but also automatic recognition can be realized for vehicle license plate, container number and special graphic images after learning.

10x

A beef and mutton importer increased the collection speed of warehousing weight by 10 times

20x

A traffic law enforcement department increased the speed of license plate entry by 20 times

30x

At a port terminal, the accuracy of container collection has been improved by 30 times

10x

The accuracy of watt-hour meter in a country has been improved by 10 times

Quick understanding

What is MDR?

MDR(Mobile Direct Recognition)That is, mobile direct recognition. OCR (Optical) is developed by taking full advantage of the 2D scanning engine or CMOS camera engine built in the mobile data terminal series and the computing power of high-speed CPU Character Recognition) software solution.

When encountering characters, dates and graphics that are not barcoded, you may have to choose to enter them manually. However, there are also a large number of characters, dates and graphics that are not barcoded in enterprises, and these information also need to be quickly recognized and automatically read. MDR software is combined with mobile data terminal, which can quickly and accurately read and automatically transmit the characters on the beef and mutton label, the shelf life on the commodity, the box number on the container, the vehicle license plate, the machine-readable area on the passport, the reading on the instrument, the information printed on the material, and the DPM characters on the metal parts to the enterprise's background system.

Features

MDR Features of mobile OCR recognition system

Identification pattern can be customized

Support voice input

Specific scene recognition function

Multi-font recognition

(Letters, Chinese characters, special characters)

Support multi-class port output

(It can be directly output to the computer cursor through Bluetooth or WIFI)

High flexibility

(Secondary development can be carried out according to the customer's site conditions)

Support multiple call methods

Multiple verification methods to improve recognition accuracy

Support multi-country voice broadcast recognition results

Product Details

1. Length, width and height text messages printed on the outer box

2. Read the non-barcode character information on the label

3. Read character information such as batch number and shelf life

4. Read the weight of the item on the label

5. Read the serial number on the circuit board or metal

6. Container number identifying international standards

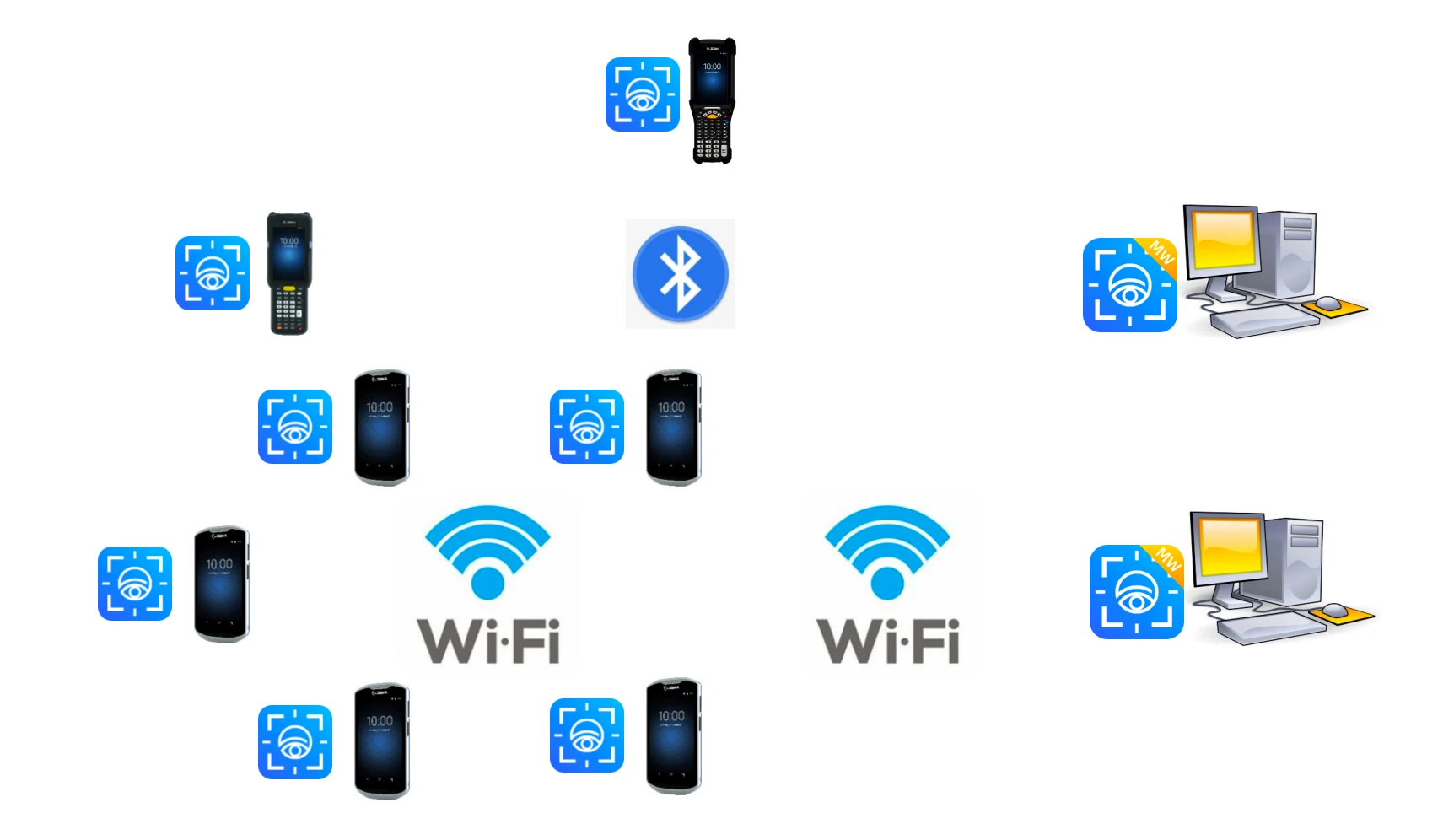

Software Architecture

MDR supports three communication modes: 1. Independent operation, 2. Connection with PC via Bluetooth, 3. Connection with PC via WIFI

Product Details

MDR is an OCR software solution developed by taking full advantage of the built-in 2D scanning engine or CMOS camera engine of mobile data terminal series products and the computing power of high-speed CPU.

1. Length, width and height text messages printed on the outer box

2. Read the non-barcode character information on the label

3. Read character information such as batch number and shelf life

4. Read the weight of the item on the label

5. Read the serial number on the circuit board or metal

6. Container number identifying international standards

Software Architecture

MDR supports three communication modes: 1. Independent operation, 2. Connection with PC via Bluetooth, 3. Connection with PC via WIFI

Solution

Recognition of various characters

This is the most basic OCR function of MDR. The customer does not need to use OCR fonts. MDR can recognize various fonts (more than 30 mainstream fonts such as Song typeface, bold typeface, regular typeface, and fonts built in ZEBRA series printers). It can easily identify non-barcode information on labels, such as production date, weight, batch number, and so on.

Learn more

License plate recognition

Accurate identification can also be provided for all standard license plates in China, including new energy license plates. The types of license plates that can be identified include: ordinary blue and yellow plates, double yellow plates, ordinary black plates, police plates, embassy car plates, coach car plates, Hong Kong and Macao entry and exit license plates, new military license plates, new armed police license plates, consulate license plates, trailer license plates, agricultural vehicle license plates, 02 type personalized license plates, civil aviation license plates, new energy license plates

Learn more

Container number identification

Identify the 11-digit container number of the international standard. Whether it is in one line, two lines or vertical, it can be easily identified.

Learn more

Handwriting Recognition

MDR can recognize handwritten digits, which is usually the most challenging recognition requirement in the OCR field

Learn more

Character recognition of heat-shrinkable tube

CRRC Group will use a large number of data cables in the production of high-speed railway cars. Each cable will be covered with a heat-shrinkable tube. There are printed characters on the heat-shrinkable tube to uniquely identify a cable. However, because the heat-shrinkable tube will shrink sharply after heat-shrinking, resulting in character deformation, MDR can easily identify such deformed characters

Learn more

Car 3C identification

There is a 3C conformity label on the windshield of the car. This label is printed in reverse. MDR can easily recognize the characters with a mirror image of 180 degrees

Learn more

Vehicle VIN identification

MDR can easily identify the standard VIN code stamped on the windshield and body of the car and automatically verify it to meet the coding standards of the global car manufacturers

Learn more

Steel coil number identification

Easily identify the characters sprayed on the high-temperature steel coil, because the shrinkage of the steel coil causes the character shape to change, and MDR can still easily identify

Learn more

8421 punch code on the circuit board

MDR can easily identify and read the 8421 code formed by punching

Learn more

Identification of various meters

MDR can identify the readings of industrial meters such as electric meters

Learn more

Passport identification

MDR can identify the MRZ (machine-readable area) on the global standard passport. In the major duty-free stores, MDR greatly facilitates the automatic reading of the passport by mobile sales personnel when performing on-site service for customers

Learn more

Solution

Recognition of various characters

This is the most basic OCR function of MDR. The customer does not need to use OCR fonts. MDR can recognize various fonts (more than 30 mainstream fonts such as Song typeface, bold typeface, regular typeface, and fonts built in ZEBRA series printers). It can easily identify non-barcode information on labels, such as production date, weight, batch number, and so on.

Learn more

License plate recognition

Accurate identification can also be provided for all standard license plates in China, including new energy license plates. The types of license plates that can be identified include: ordinary blue and yellow plates, double yellow plates, ordinary black plates, police plates, embassy car plates, coach car plates, Hong Kong and Macao entry and exit license plates, new military license plates, new armed police license plates, consulate license plates, trailer license plates, agricultural vehicle license plates, 02 type personalized license plates, civil aviation license plates, new energy license plates

Learn more

Container number identification

Identify the 11-digit container number of the international standard. Whether it is in one line, two lines or vertical, it can be easily identified.

Learn more

Handwriting Recognition

MDR can recognize handwritten digits, which is usually the most challenging recognition requirement in the OCR field

Learn more

Character recognition of heat-shrinkable tube

CRRC Group will use a large number of data cables in the production of high-speed railway cars. Each cable will be covered with a heat-shrinkable tube. There are printed characters on the heat-shrinkable tube to uniquely identify a cable. However, because the heat-shrinkable tube will shrink sharply after heat-shrinking, resulting in character deformation, MDR can easily identify such deformed characters

Learn more

Car 3C identification

There is a 3C conformity label on the windshield of the car. This label is printed in reverse. MDR can easily recognize the characters with a mirror image of 180 degrees

Learn more

Passport identification

MDR can identify the MRZ (machine-readable area) on the global standard passport. In the major duty-free stores, MDR greatly facilitates the automatic reading of the passport by mobile sales personnel when performing on-site service for customers

Learn more

Vehicle VIN identification

MDR can easily identify the standard VIN code stamped on the windshield and body of the car and automatically verify it to meet the coding standards of the global car manufacturers

Learn more

Steel coil number identification

Easily identify the characters sprayed on the high-temperature steel coil, because the shrinkage of the steel coil causes the character shape to change, and MDR can still easily identify

Learn more

8421 punch code on the circuit board

MDR can easily identify and read the 8421 code formed by punching

Learn more

Identification of various meters

MDR can identify the readings of industrial meters such as electric meters

Learn more

Success Cases

View details
Manufacturing

Yihai Kerry case analysis

Dongguan Fuzhiyuan Feed Protein Development Co., Ltd. has a large volume of export business. The exported goods and the corresponding data information must be exactly the same. Therefore, data information recording in the last step of export is the most important. The license plate number, container number, and lead seal number must be correct, but since the three data need to be taken and recorded manually...

Download case study
View details
Cattle and sheep meat copy

MDR helps Suzhou Jinyouchen solve the code copying problem for the vast number of beef and mutton cold chain customers

Jin Youchen uses language recognition MDR software to quickly and accurately identify the weight information in the label. Continuous identification of more than 5000 cases will not result in speed slowdown. Zebra's handheld terminal device MC33 is used in the cold storage, which is stable and reliable in low temperature environment and effectively solves the problems of jamming and crash.

Download case study
View details
Logistics industry

MDR helps Xinning Logistics achieve substantial improvement in warehousing efficiency

Through the implementation of Baxter MDR project, Xining Logistics' identification speed of material number has been increased from more than 20 seconds to less than 1 second, and the overall warehousing operation efficiency has been increased by 6 times. The one-time accuracy rate has increased from about 80% of the original manual input to more than 95%. Xining Logistics has made such achievements in implementing the Baxter MDR software...

Download case study

Common Problem

MDR has complete OCR function. In addition, MDR can also recognize many scenes outside the OCR category, such as 8421 punch code, color recognition, vehicle license plate recognition, etc

The built-in OCR function of the PDA scanning engine can only recognize the special OCR fonts (OCR-A, OCR-B), while the MDR can recognize all printed, even handwritten.

MDR supports all mainstream PDA brands in the world, such as ZEBRA, CASIO, iData, SEUIC, CipherLab, Urovo, Honeywell

Currently only Android is supported, and Android version 6 and above are all supported

MDR can be called by any APP using the method of Intent. We provide development documents for the integration of customers' APP. In addition, the integrated MDR can use the main window mode and the floating window mode. If the floating window mode is used, the customer will not see the MDR logo when using your APP.

In addition to numbers, uppercase and lowercase English, and common symbols, MDR can recognize simplified Chinese by default. If you need to recognize other words, you need to contact technology to provide a special recognition package.

MDR can support OCR recognition by acquiring images from two-dimensional scanning engine, which is called image mode.

You can purchase a USB Bluetooth stick specially developed for language recognition, and insert this Bluetooth stick into the USB interface of the PC, so that the MDR recognition results can be transmitted to the cursor location on the PC in real time, without installing any software on the PC.

Bluetooth and WiFi are both available. Of course, it also supports importing the recognition results to the PC through the data line

Generally, PDAs that can identify multiple barcodes at one time have this function. If customers want to use MDR to achieve this, they need to use our other software AIV to jointly identify multiple barcodes at one time.

No recognition technology can achieve 100% accuracy, and even bar code recognition has certain errors. MDR uses additional mechanisms to recheck the identification results and try to eliminate erroneous results, so that the OCR results reach an industrial availability level.

MDR supports telnet and enterprise browsers of Wavelink (ivanti), as well as enterprise browsers of ZEBRA.

MDR can cooperate with our other software AIV to realize the overall recognition of complex tags.

Immediately use the powerful recognition function of Linguistic MDR to quickly and accurately read characters and improve productivity!
